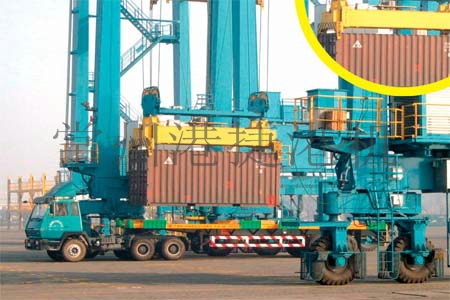

单箱场桥用伸缩式集装箱吊具

主要用于堆场用集装箱起重机等运行速度不是很快,起升高度不是很高的集装箱装卸机械装卸集装箱。采用全液压驱动,油缸驱动浮动式转销,液压马达链传动伸缩机构,固定式导板。
技术参数
Technical Parameter

适用箱型
Suitable For Containers
ISO标准20′、40′、APL45′
ISO standard 20′、40′、APL45′
额定起重量
Rated Hoisting Weight
41吨+10%偏心载荷
41 tonnes±10%eccentric loading
吊具四角吊耳负重
Lifting Lugs In End Beam
10吨×4
4×10tonnes
自重
Weight
8.4吨
8.4 tonnes
伸缩
Telescopic Motion
∼25秒(20′到40′)
From 20′to40′in 25 seconds
转销
Twistlock Rotation
1秒(90°)
90° approximately in 1 seconds
电源
Power Suppy And Consumption
交流380V,频率50Hz,功率7.5kW
380VAC 50Hz 7.5kW
表面处理
Surface Conditioning
冲砂 SA2½ ,2层环氧富锌底漆,2层丙烯酸面漆
Sand-blasted SA2½ ,two coats of zinc-rich epoxy primer and two ccats of acrylic top coat
防护等级
Protection Class
IP55
液压
Hydraulics
系统压力10MPa
System pressure 10MPa
环境温度
Suitable Ambient Temperature
-20℃∼+40℃
