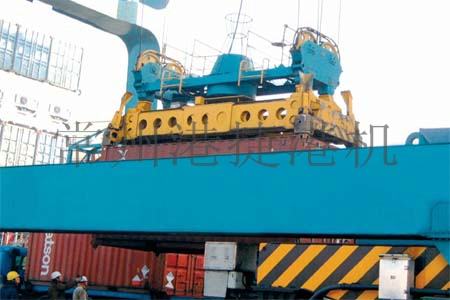

轻型伸缩式集装箱吊具

该系列吊具是专为早期集装箱起重机改造需求而设计制作的,由于大大降低了吊具自身重量,使得起重机的有效载荷相应加大。该吊具也适用于其他对集装箱起重机的自重有限制的场合。吊具采用全液压驱动,油缸驱动浮动式转箱,液压马达链传动伸缩机构。其中LSS3540,采用液压驱动可翻转导板;LYS3540适用于场桥,采用固定式导板。
技术参数
Technical Parameter

适用箱型
Suitable For Containers
ISO标准20′、40′、APL45′
ISO standard 20′、40′、APL45′
额定起重量
Rated Hoisting Weight
35吨+10%偏心载荷
35 tonnes±10%eccentric loading
吊具四角吊耳负重
Lifting Lugs In End Beam
9吨×4
4×9tonnes
自重
Weight
6.5吨
6.5 tonnes
伸缩
Telescopic Motion
∼25秒(20′到40′)
From 20′to40′in 25 seconds
导板
Guide Arm Speed
3∼5秒(180°)
180° in 3∼5 seconds
转销
Twistlock Rotation
1秒(90°)
90° approximately in 1 seconds
电源
Power Supply And Consumption
交流380V,频率50Hz,功率5.5kW
380VAC 50Hz 5.5kW
表面处理
Surface Comditioning
冲砂 SA2½ ,2层环氧富锌底漆,2层丙烯酸面漆
Sand-blasted SA2½ ,two coats of zinc-rich epoxy primer and two ccats of acrylic top coat
防护等级
Protection Class IP55
IP55
液压
Hydraulics
系统压力10MPa
System pressure 10MPa
环境温度
Suitable Ambient Temperature
-20℃∼+40℃
